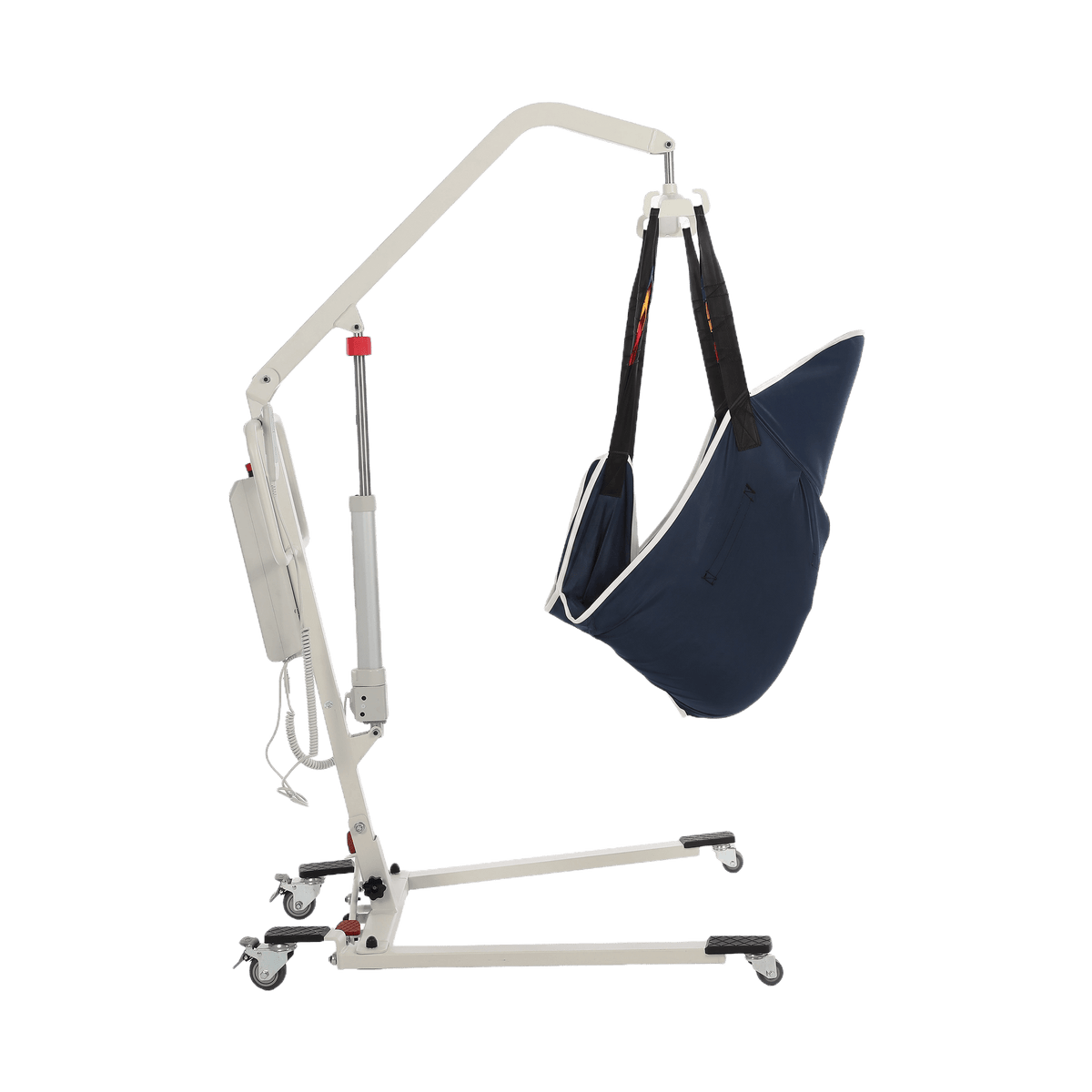

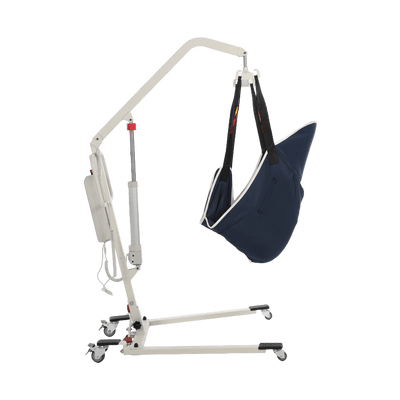

EL5001-
No se pudo cargar la disponibilidad de retiro
220 lbs
Safe Support
80–120 Lifts
Per Charge
8000N Motor
Powerful & Quiet
Foldable
Easy Storage
30-day Return and Exchange
2 Year Warranty
Free Express Shipping
Product Specifications
Product Specifications
Detailed product and battery information.
Product Highlights

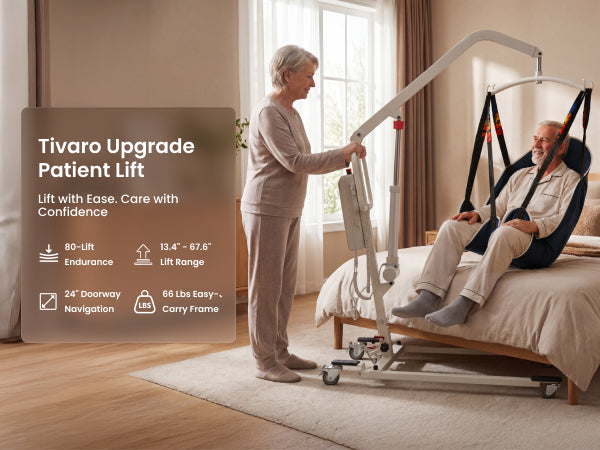

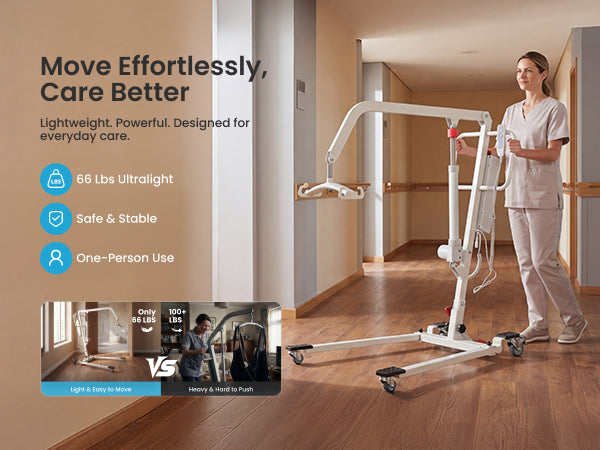

- Quick-folding design and adjustable base make it easy to store, transport, and use in bedrooms, bathrooms, hallways, or travel settings.
- High-performance MOTECK motor delivers 8000N lifting force with smooth, quiet, and vibration-free operation for more comfortable transfers.

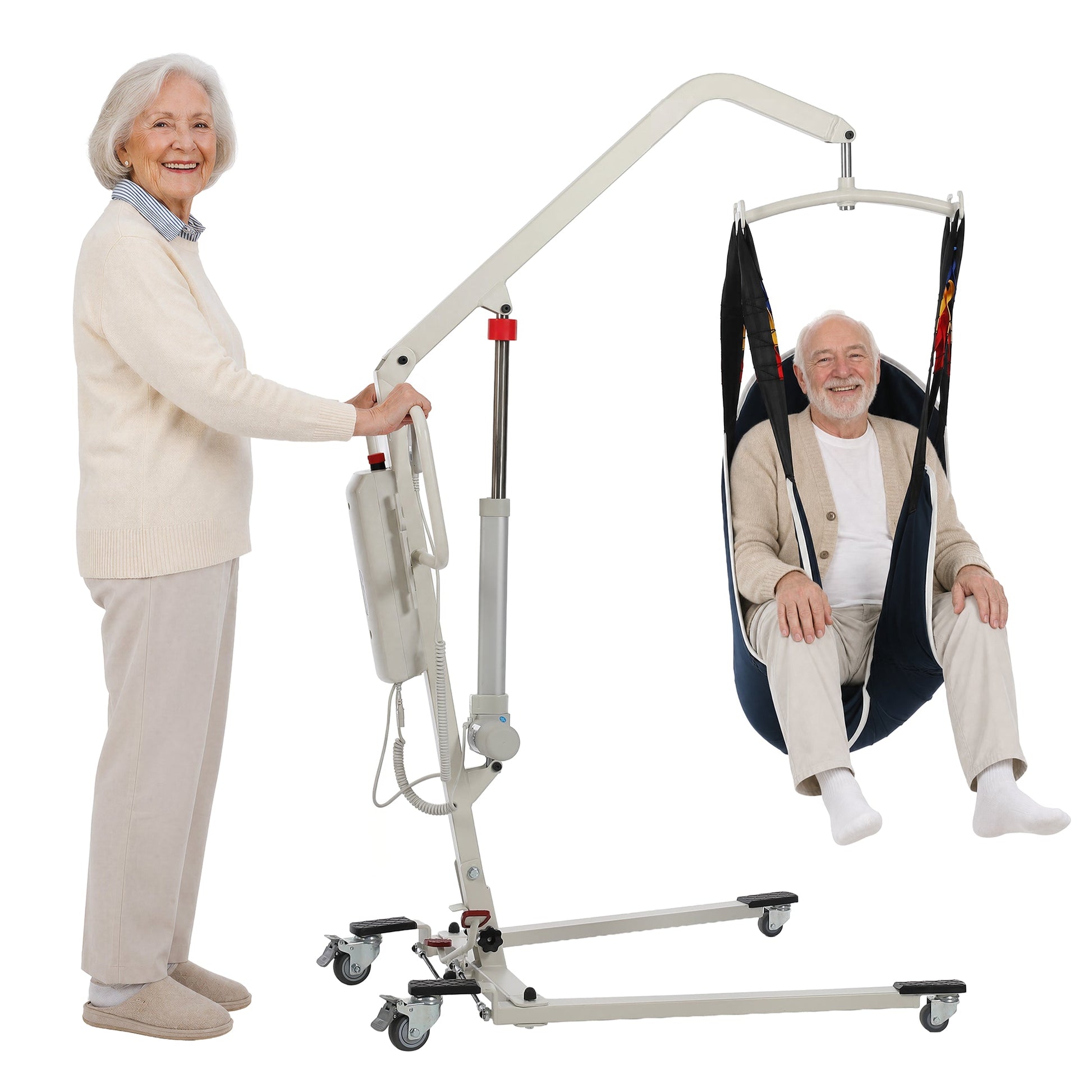

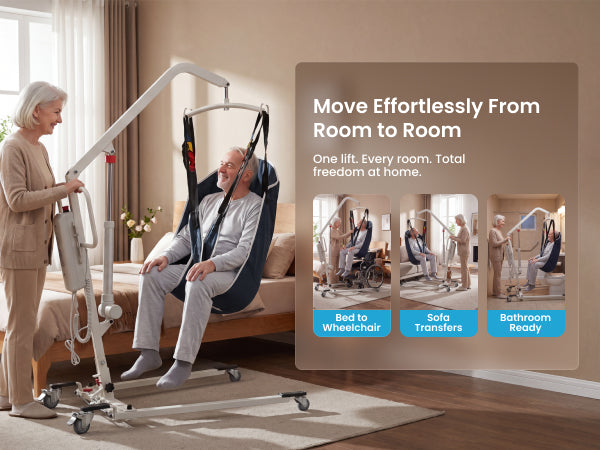

- Comes with a breathable full-body sling and 360° rotating sling bar for secure, comfortable, and flexible transfers between bed, wheelchair, toilet, sofa, or floor.
- Provides 80–120 lifts per charge, with an emergency stop button and manual lowering backup for safer use during power failure or unexpected situations.
- Durable steel frame supports up to 330 lbs, while the foot-pedal adjustable base and low-profile casters improve stability and access under beds or sofas.
| Specification | Details |
|---|---|
| Product Details | |
| Weight | 64 lb |
| Load Capacity | 330 libras |
| Motor | Brushless Motor |
| Motor Specification | 2 x 10Ah |

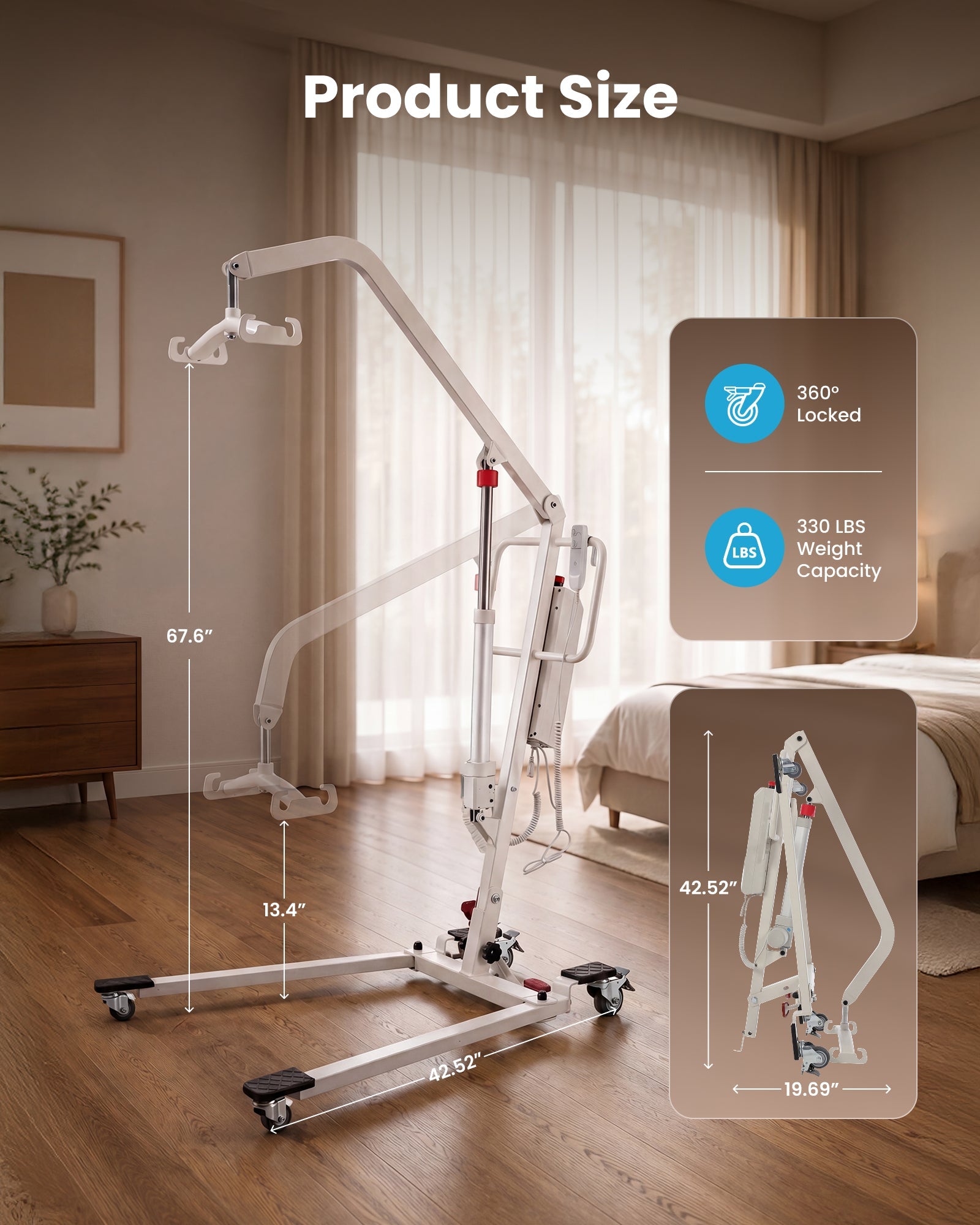

| Unfold Size | 39.37 × 22.83 × 34.65 in |
| Fold Size | 29.53 × 16.73 × 27.56 in |
| Seat Width | 17.5 in |
| Front Wheels | 7 in |
| Rear Wheels | 11 in |
| Battery Details | |
| Battery Specification | 24V 10Ah |
| Battery Type | Lithium Battery |
| Battery Weight | 2.4 lb |
| Charging Time | 6-8 hours |
| Battery Life | 3-5 years |
| Battery Runtime | 30 miles |
Questions before or after your order?
Use the right inbox for faster help with product questions, payment questions, shipping questions, and order support.
Compare Models
| Model | EL5001- | EL3001 |
|---|---|---|
| Image |
|
|
| Price | $799.00 | $439.99 |
| Motor | - | Motor sin escobillas |
| Net Weight | 64 lb | 40 lb |
| Load Capacity | 330 libras | 450 |
| Seat Width | 17.5 in | 18 in |
| Unfolded Dimensions (LxWxH) | 39.37 × 22.83 × 34.65 in | 27*18*17.5'' |
| Folded Dimensions (LxWxH) | 29.53 × 16.73 × 27.56 in | 29*22.5-10.5” |
| Front Wheels | 7 in | 2 in |
| Rear Wheels | 11 in | 3 in |
| Shop Now | Shop Now |
Frequently Asked Questions
Find answers to common questions about this product.
What is the EL5001 used for?

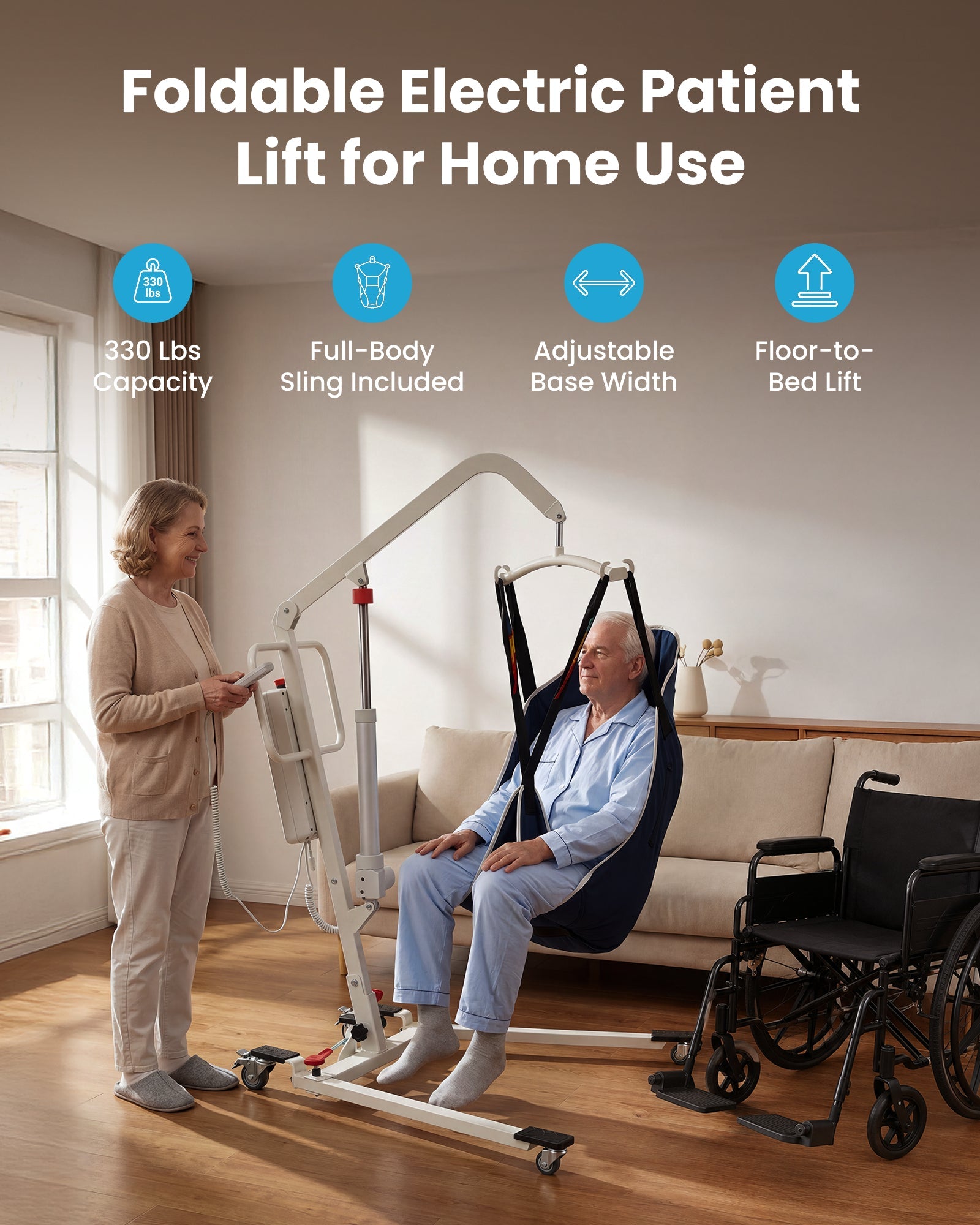

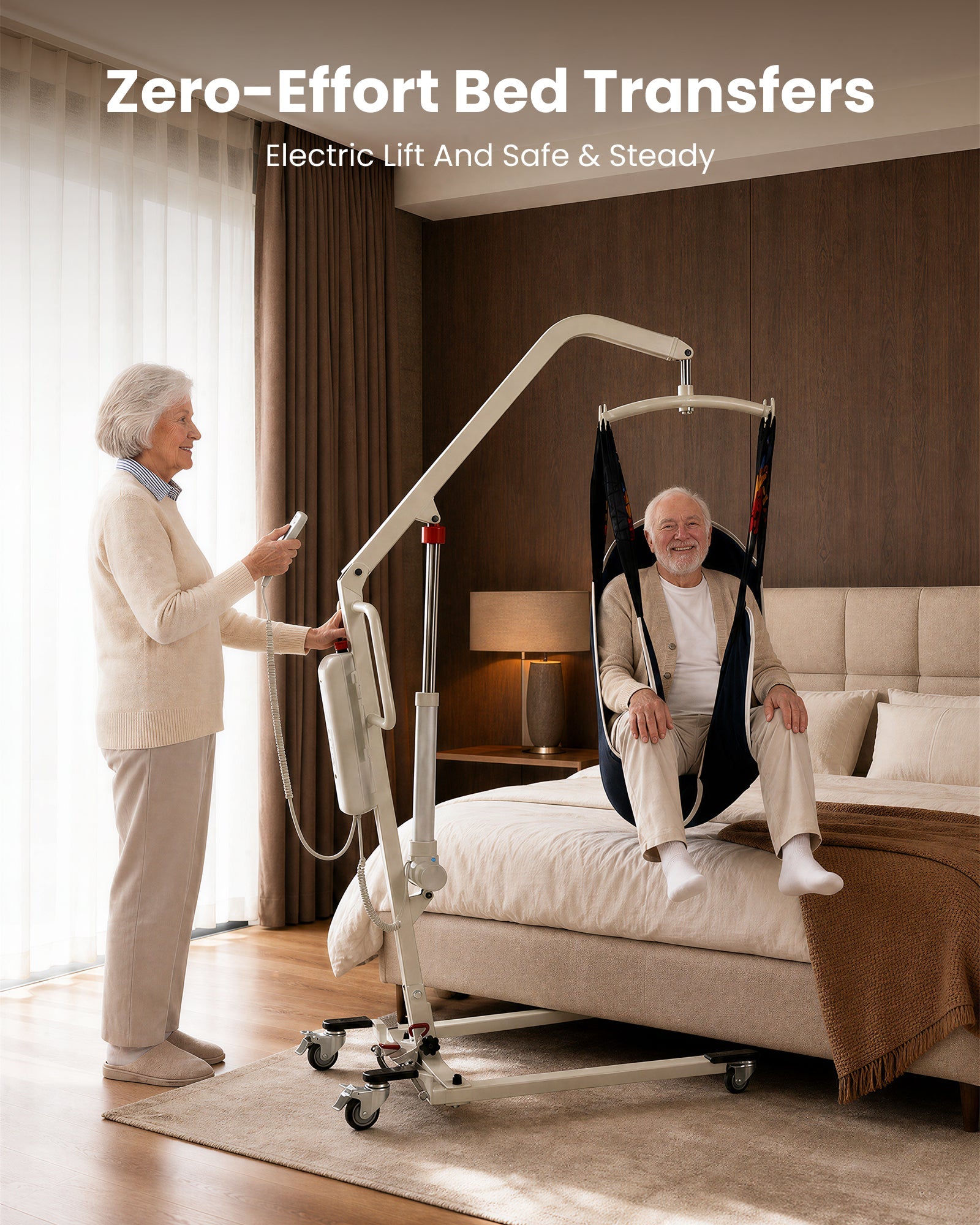

The EL5001 helps caregivers safely transfer elderly, bedridden, injured, or mobility-impaired users between a bed, wheelchair, toilet, sofa, floor, or other seating areas.
What is the maximum weight capacity?
The EL5001 supports up to 220 lbs, making it suitable for most home care transfer needs.
Is the EL5001 suitable for home use?
Yes. It is designed for home caregivers, with a foldable frame, adjustable base, and smooth casters for use in bedrooms, bathrooms, hallways, and living areas.
Is it foldable and easy to store?
Yes. The foldable design allows the lift to be stored in a closet, car trunk, or compact home space when not in use.
How wide is the adjustable base?

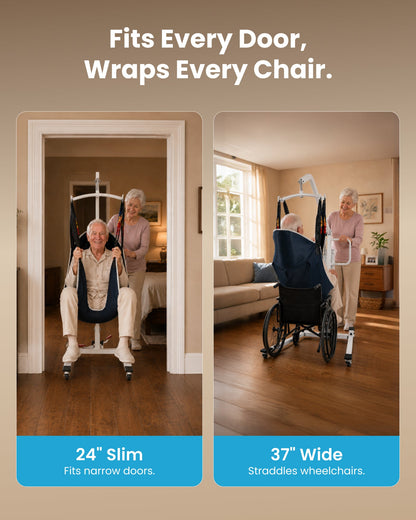

The base width adjusts from 24 inches to 37 inches, helping it move through narrow hallways and fit around wider furniture.
What type of motor does it use?
The EL5001 uses a high-performance MOTECK motor with 8000N lifting force for smooth, quiet, and stable lifting.
Can it be used in bathrooms?
Yes. The lift has an IPX6 waterproof rating, making it suitable for bathroom or high-humidity environments, but it should not be submerged in water.
Does it come with a sling?
Yes. It includes a breathable, skin-friendly full-body sling rated up to 330 lbs for secure and comfortable transfers.
Does the sling bar rotate?
Yes. The 360° rotating sling bar helps caregivers align and reposition users smoothly during transfers.
How many lifts can it provide per charge?
The EL5001 provides approximately 80–120 lifts per charge, depending on user weight, lifting height, battery condition, and usage habits.

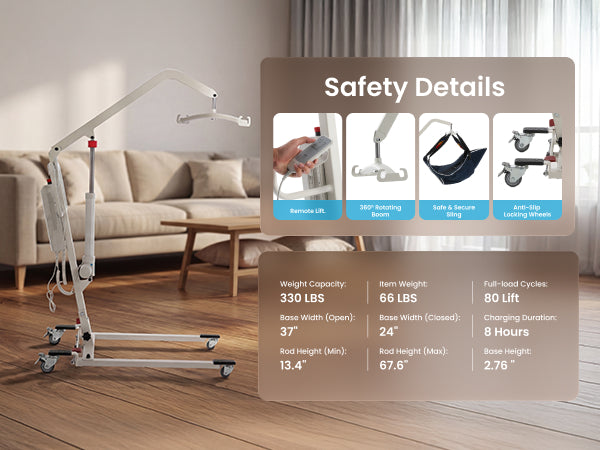

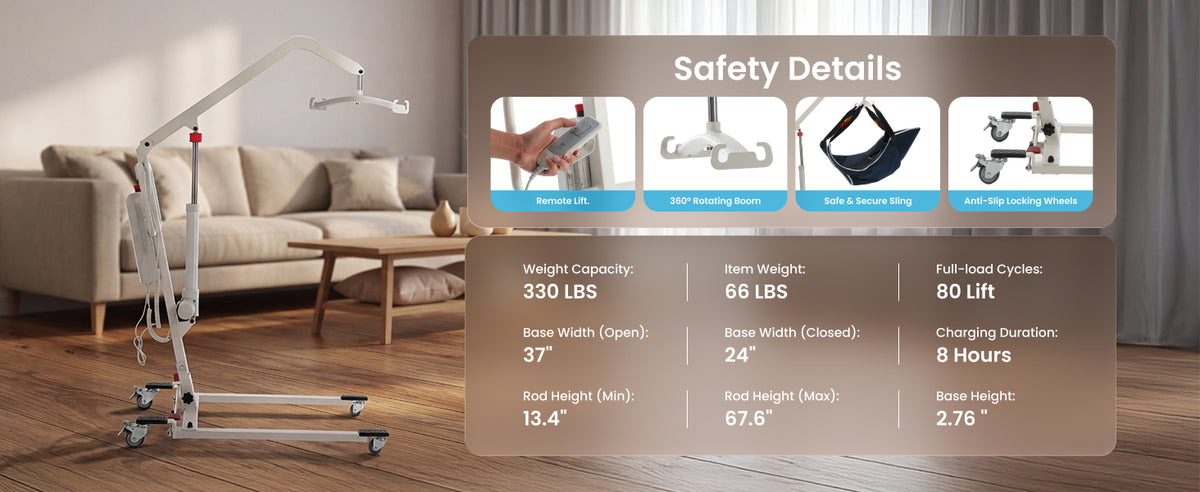

What safety features does it include?

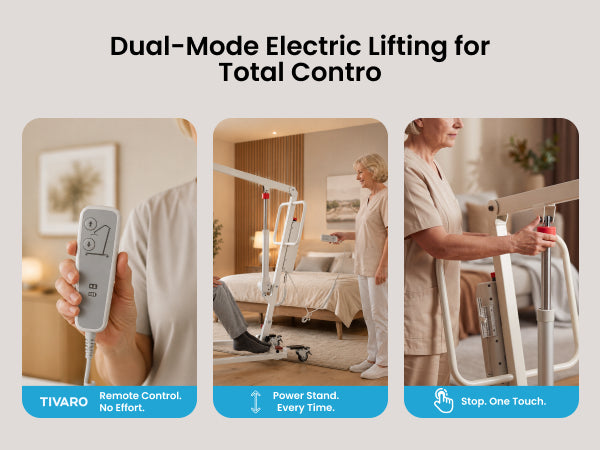

It includes an emergency stop button, manual lowering backup, stable steel frame, and secure sling support for safer daily transfers.
Can it lower the patient if the battery runs out?
Yes. The built-in manual lowering function allows caregivers to safely lower the user even during a complete power failure.
Can it fit under beds or sofas?
Yes. Low-profile casters help the lift slide easily under beds, sofas, and similar furniture for easier transfers.
Is assembly required?

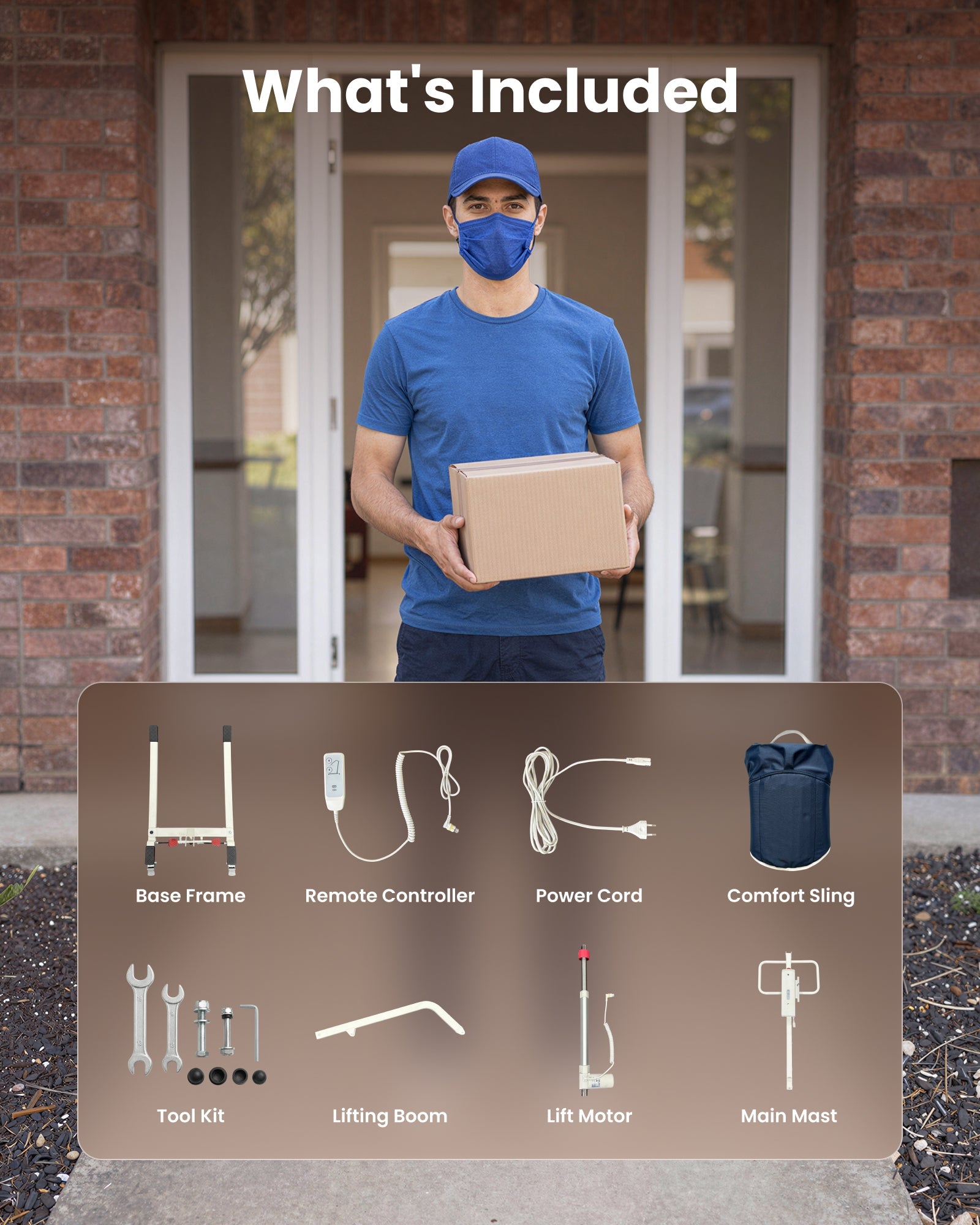

Yes, but setup is quick and simple with tool-free assembly, and a step-by-step video guide is included.
